Arducam 2MP Day & Night Vision USB Camera Module, 1080P Automatic IR-Cut Switching USB 2.0 Webcam, with 850nm IR LEDs for Windows, Linux, Android and Mac OS
$44.99
Related Products
Product description
Overview
The Arducam True Day & Night Vision USB2 UVC Camera is designed for reliable imaging around the clock. Featuring a STARVIS 2 sensor and auto-switching feature, it delivers vibrant color in daylight and crisp infrared images in darkness. With 8 built-in IR LEDs, excellent low-light sensitivity, and a 95° wide-angle fixed lens, it captures clear, expansive views in any lighting condition. Its durable metal housing and USB 2.0 UVC compliance ensure easy plug-and-play integration on Windows and Linux, while AI-friendly low-resolution YUV output makes it ideal for computer vision and edge AI applications.
Daytime Mode
In natural daylight or well-lit environments, the camera captures vivid full-color images, clearly displaying surrounding details.
Nighttime Modes
When light levels drop or there is no visible light, the IR-cut filter automatically switches to night mode, and the IR LEDs turn on to deliver clear black-and-white infrared night vision.
Image Sensor & Lens
Color Filter Type Color Shutter Type Rolling Shutter Optical Size 1/2.8″ Output Format MJPG/YUV/H.264 Pixel Size 2.9 µm x 2.9 µm Sensor Active Area 1920(H) x 1080(V) Frame Rate(MJPG/H.264) 1920×1080@30FPS, 1280×720@30FPS, 640×480@30FPS; Frame Rate(YUV) 640×480@30FPS, 320×240@30FPS; 320×320@30FPS, 128×128@30FPS; 96×96@30FPS; IR Sensitivity Sensitive to visible light during the day, sensitive to IR at night with 850nm IR LEDs on. Focus Type Fixed Focus FOV 102°(D)×86°(H)×47°(V) F.NO F1.0 E.F.L 3.9mm Default Focus Range 3M-INF
Other Specs
Operating Voltage 5 V +/- 5% Power Consumption Max: 1.8W Camera Board Size 38mmX38mmX1.6mm Overall Weight (Net) 157g Exposure Time Range 10~50ms Supported OS Windows, Linux Recommend Sample Application Amcap for Windows, qv4l2 for Linux UVC Controls Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance(Auto/Manual), Backlight Contrast, Low Light Compensation, Gain, Exposure(Auto/Manual). Temperature Range (Storage) -14°F-167°F (-10°C to +75°C) Temperature Range (Operating) 32°F-122°F (0°C to +50°C) Certification CE/RoHS
True Day/Night Switching
Automatically switches between day and night modes for accurate color by day and clear IR imaging at night.
Enhanced Low-Light Performance
Equipped with a high-sensitivity starvis sensor and eight 850nm IR LEDs, the camera delivers exceptional clarity in low-light scenes. Enjoy vivid detail and sharp visibility from dusk to complete darkness.
18M Night Vision Range
Provide superior clarity in low-light scenes, achieving a clear 18m/60ft night vision range.
Wide-Angle Lens
A wide 102° diagonal viewing angle allows the camera to cover more area with fewer blind spots. Ideal for monitoring large spaces, hallways, entrances, and outdoor surroundings.
True Day & Night Vision – Automatically switches between daytime and nighttime modes for accurate color during the day and clear infrared-sensitive images in darkness. Ideal as a USB security camera or PC webcam
High-Quality Imaging – This USB infrared camera adopts 2MP STARVIS 2 sensor with 102°×86°×47° fixed lens ensures sharp, detailed images, reducing blind spots and minimizing the need for multiple units in coverage-critical applications. Supports MJPG, YUV, and H.264 formats, a good choice for 1080p webcam
Enhanced Low-Light Performance – This ir webcam is equipped with 8 integrated IR LEDs provide up to 18 meters night vision, making it perfect for mini webcam, USB camera module applications where lighting is limited
Plug & Play Convenience – This night vision webcam fully USB 2.0 UVC compliant, works instantly on Windows, Linux, Android, and Mac OS without additional drivers. Perfect for web camera for laptop, PC webcam, small USB camera, or mini USB camera setups
AI-Friendly Streaming – In addition to full-resolution video, the infrared usb camera supports low-resolution YUV output optimized for AI workloads. This allows developers to efficiently run computer vision algorithms and edge AI applications with reduced processing overhead.
Versatile Applications – Compact design and wide-angle coverage make it ideal as a 3D printer camera, Lightburn camera for laser engraver, USB security camera, or embedded vision projects
2 reviews for Arducam 2MP Day & Night Vision USB Camera Module, 1080P Automatic IR-Cut Switching USB 2.0 Webcam, with 850nm IR LEDs for Windows, Linux, Android and Mac OS
Add a review
$44.99
MaplewoodGeek –
Rugged case, meh picture, not the best stand

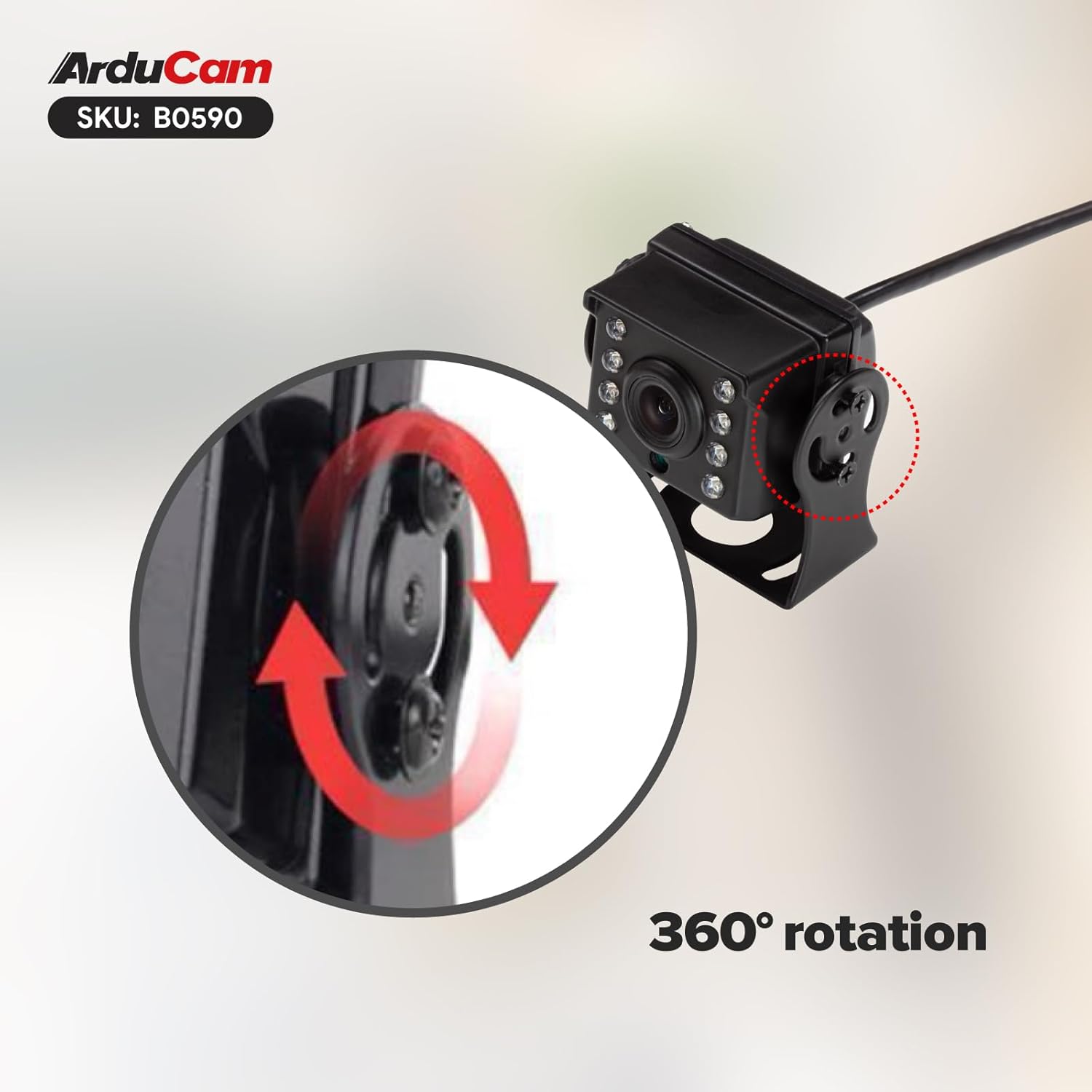

I have several other Arducams and this one has by far the most rugged case. Most of them are cameras on a circuit board with no case. I have 3D printed cases for the other cameras, but they cannot compare to the nice metal case on this camera.The case has a built-in stand, but the stand is hard to position because the swivel is locked by two screws on each side. It’s really tough to get the perfect friction so the camera stays in place but can still be moved when needed. The bottom of the stand is also missing the normal 1/4-20 thread hole to allow you to attach it to a tripod or other stand.The camera has a simple USB connection for power and data and supports UVC so it’s pretty universal.The lens is an M12 fixed focus type. Anything closer than about 3 feet is blurry. Farther away, images are a little grainy. In the night vision mode, things are very grainy.It has a rolling shutter instead of a global shutter, so it’s not great for computer vision processing.
Matt –
Works, built like a tank
This is one of those rare gadgets that does exactly what it says on the tin, without pretending it’s something it’s not. I tested this Arducam 2MP Day & Night Vision USB Camera Module on both a Mac mini and a desktop PC. Plugged it in, fired it up, and it worked on both with zero drama. No drivers, no rituals, no pleading with the computer gods.Night performance is decent, not cinematic. I was able to get a usable image at roughly 20 feet in full darkness using the built-in IR LEDs. The picture isn’t razor sharp, but it’s absolutely workable for security or monitoring. You can clearly tell what’s happening, which is the entire point. If you’re expecting Hollywood-level clarity from a 2MP USB camera, that’s on you.The hardware itself is the real standout. All aluminum body, heavy for its size, and feels like it could survive being knocked off a shelf repeatedly without complaint. It has proper mounting holes on the bottom, which immediately makes it more useful than half the plastic junk sold as “security cameras.” This thing wants to be screwed into place and left alone.Software-wise, it plays nicely with VLC and other capture tools. I’ve been running it as an always-on camera pointed at a door, and it does that job well. A big upside is that the image quality is intentionally modest. You’re not generating absurd amounts of footage that eat hundreds of gigabytes per day, but you still get reliable visual coverage.Bottom line: this is a solid, utilitarian camera module for people who want something simple, durable, and predictable. No cloud nonsense, no spyware vibes, no fragile plastic shell. Just a metal brick with a lens that quietly does its job, which frankly is refreshing.
